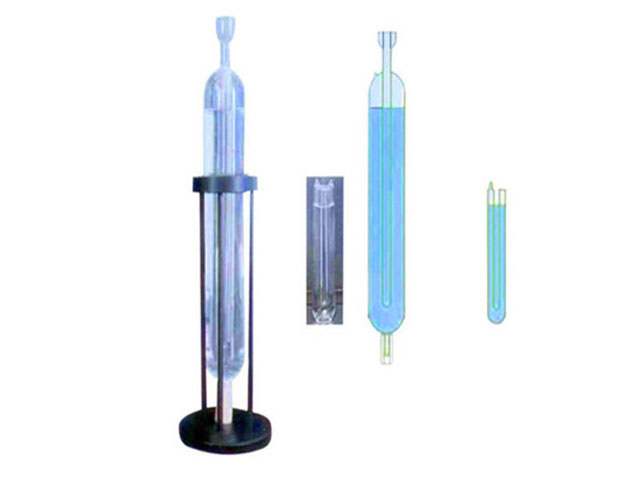

DY-DP Triple Point Water Bottle
◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Introduction]
DY-DP Water Triple Point Flask (TPW) is a temperature fixed point defined by both thermodynamic and international temperature scales.
The unit of thermodynamic temperature, Kelvin, is defined as the water triple point thermodynamic temperature 1/273.16. It is also the fixed point for the definition of the 1990 International Temperature Scale (ITS-90).
Therefore, the water triple point temperature is an important, accurate and easy to use temperature standard. The water triple point bottle achieves a temperature of 0.01℃ with an extended uncertainty of less than 0.0001℃.
[Technical indicators]
◎ Dimensions (mm): 57*380/60*450
◎ When inner hole diameter: Φ 12 mm
◎ Reproducibility: ≤ 1MK
◎ Immersion depth: 265mm
◎ Packaging material: boron-silicon glass or quartz
◎ Water source: it is the Marine water which has been carefully distilled many times
