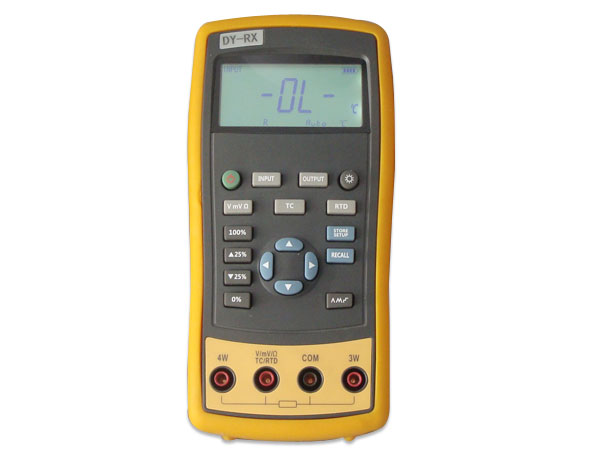

DY-RX02 Thermal Resistance Calibrator

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

DY-RX02 Thermal Resistance Calibration Device is a hand-held tool used to calibrate RTD (Temperature Measuring Resistance Body) temperature transmitters. It can simulate and measure many different types of RTDs, and it can also simulate and measure resistors.

[Product Features]

1. Strong protection function: waterproof level IP67, any signal end misconnect 220V automatic protection;

2. Measure the output temperature of the thermal resistance;

3. Simulated thermal resistance output;

4. Accuracy: DY-RX02A 0.02%, DY-RX02B 0.05%;

5. Provide manual stepping, automatic stepping, 0 ~ 100% step and slope output function;

6. With white LED backlight, manual backlight adjustment and automatic power off function, suitable for field use;

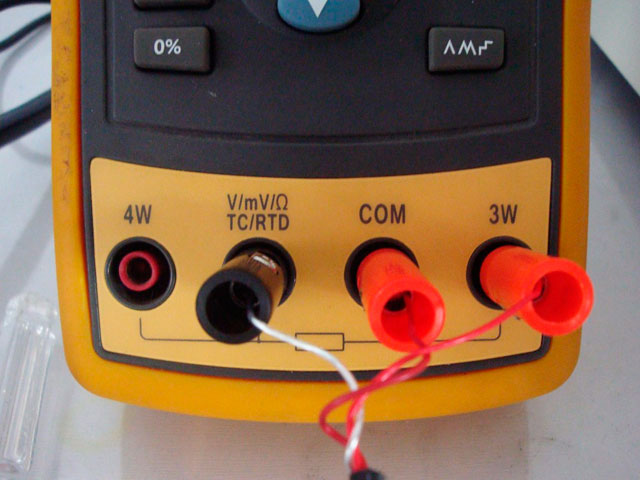

7. Unique automatic identification of three-wire, four-wire wiring mode;

8. Battery box cover, convenient battery replacement;

[Technical indicators]

General Technical Specifications

1. Operating temperature: -10℃ ~ 55℃

2. Storage temperature: -20℃ ~ 60℃

3. Relative temperature: 0 ~ 90%RH, non-condensation

4. Weight: 350g

5. Dimensions: 47 mm×93 mm×185 mm

6. Power supply: 6 7# batteries or AC adapter

Standard accessories

1. Watch pen: 18A53 watch pen 1 pay

2. Power Adapter: One 18A52 charger

List of output and measurement functions

Measurement Index

Unless otherwise stated, all indicators are based on a one-year calibration cycle and are applicable to temperatures ranging from +18 ° C to +28 ° C. All indicators assume a 10-minute warm-up time.

Output Indicators
